Neck-thru clarity, Fluence-driven tone, and high-end feel — crafted for players who push beyond the standard.
COLOR
SKU

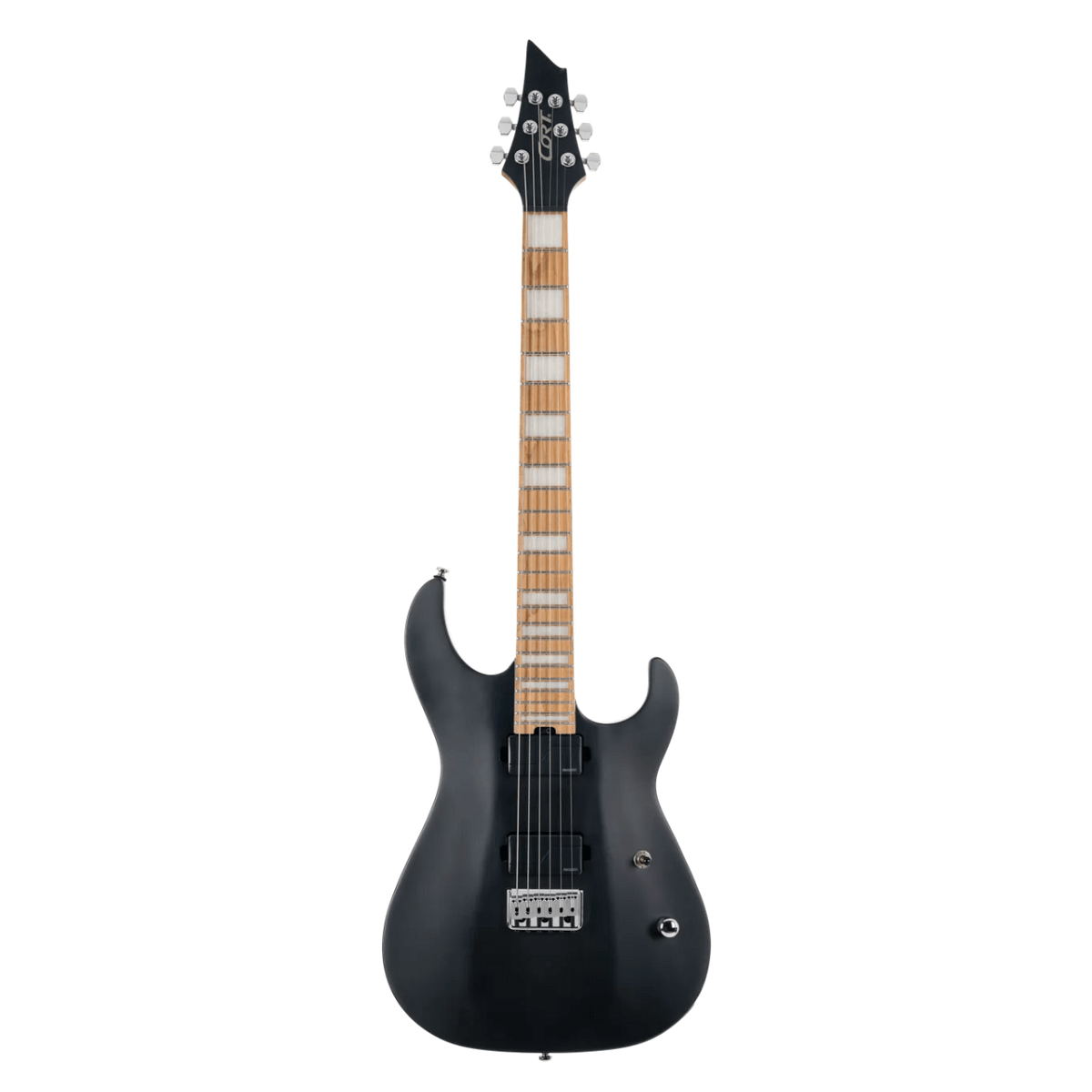

Long sustain, modern tone, and boutique feel — in a guitar built for players who demand more. The KX600 Infinite combines neck-thru construction, Fishman® Fluence Modern pickups, and a roasted maple/walnut neck for precision, power, and playability that’s hard to find without going custom. Designed with input from Neil Zaza, it’s ready for the stage, the studio, or wherever you push your sound.
Long sustain, modern tone, and boutique feel — in a guitar built for players who demand more. The KX600 Infinite combines neck-thru construction, Fishman® Fluence Modern pickups, and a roasted maple/walnut neck for precision, power, and playability that’s hard to find without going custom. Designed with input from Neil Zaza, it’s ready for the stage, the studio, or wherever you push your sound.
"*" indicates required fields

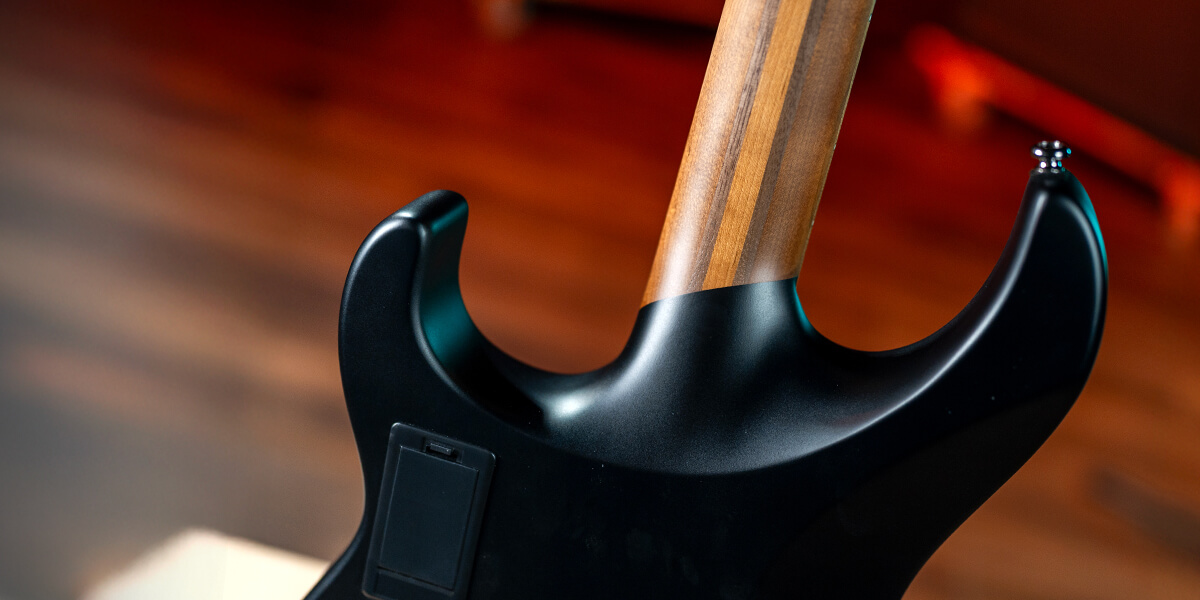

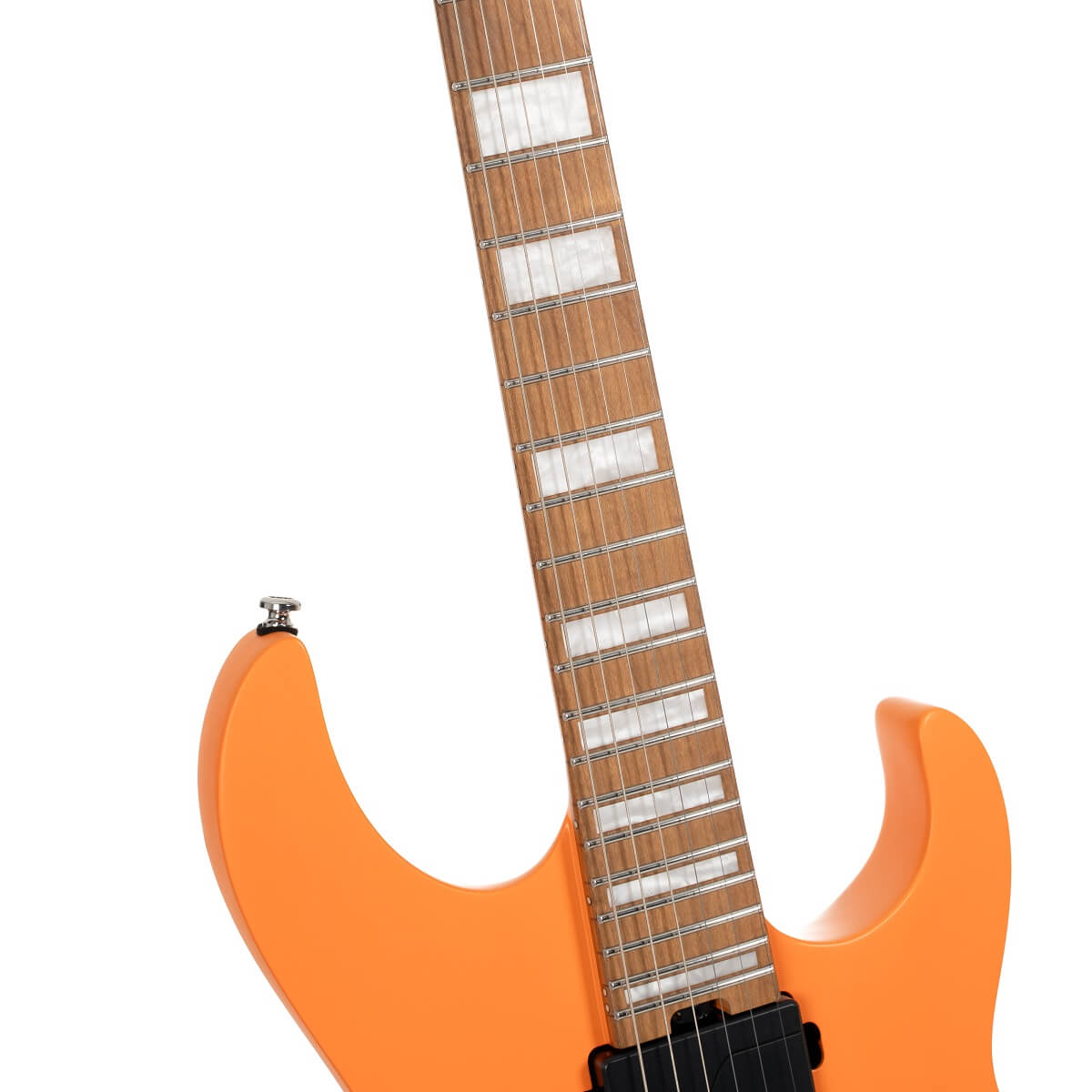

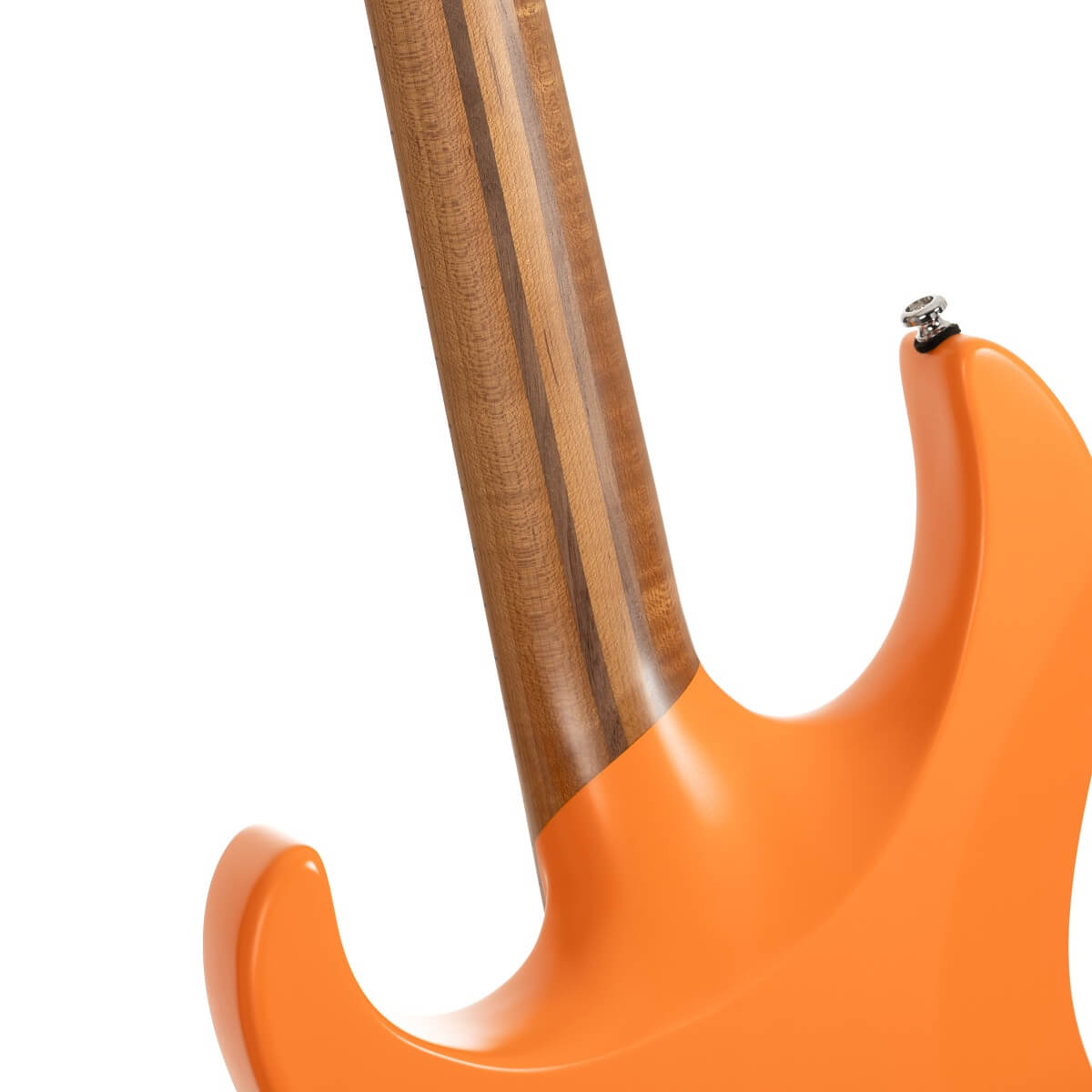

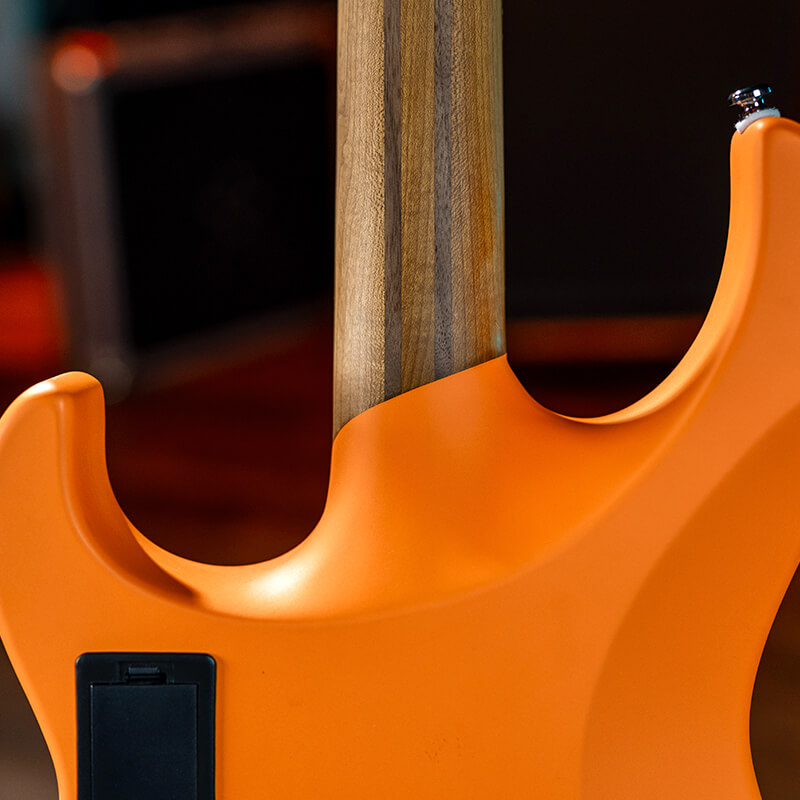

A premium neck-thru body delivers long, singing sustain and smooth access to every fret.

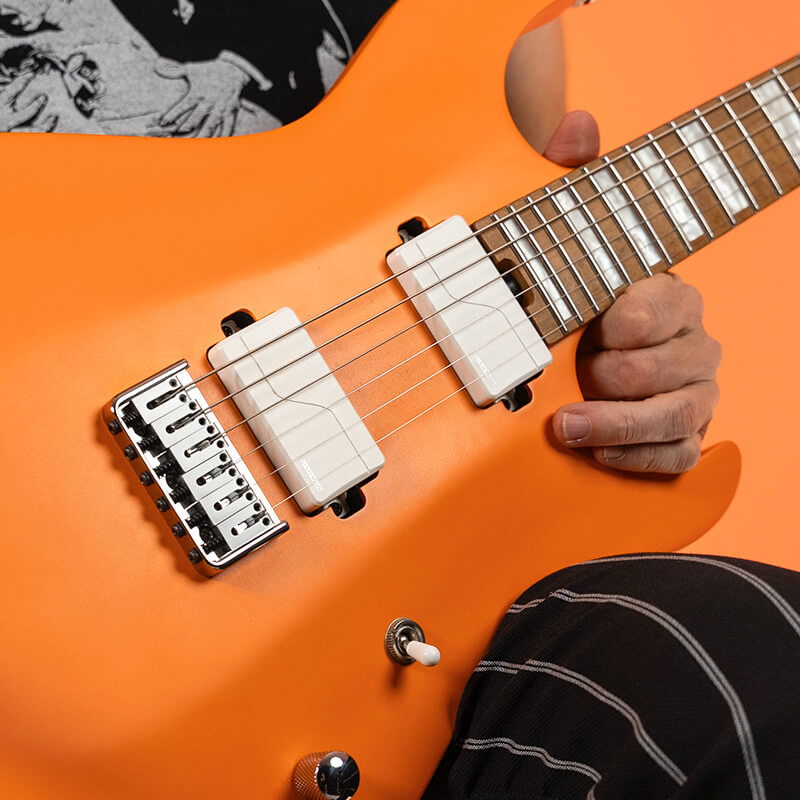

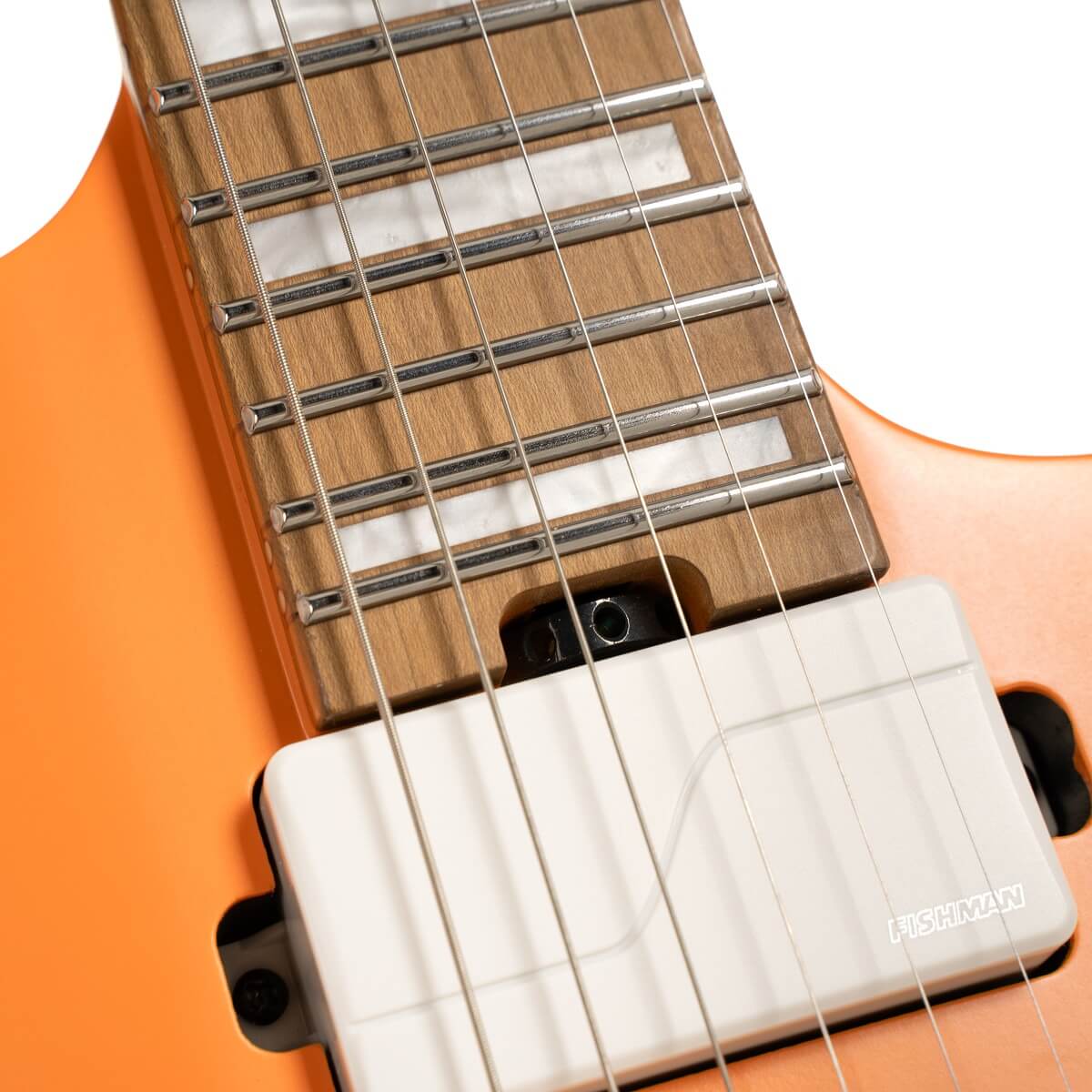

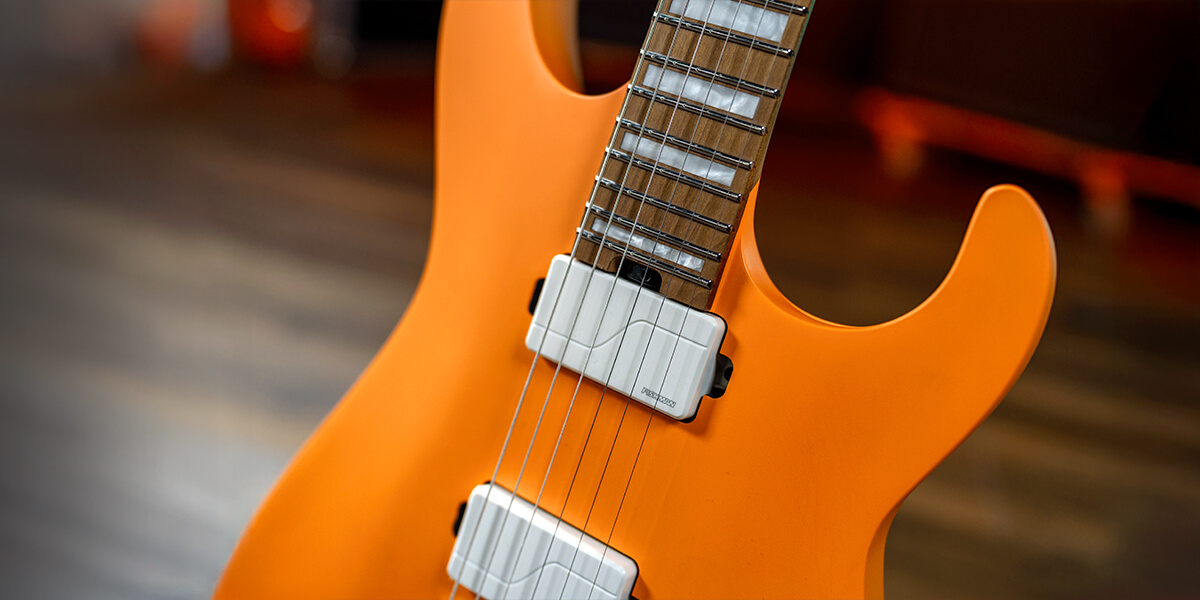

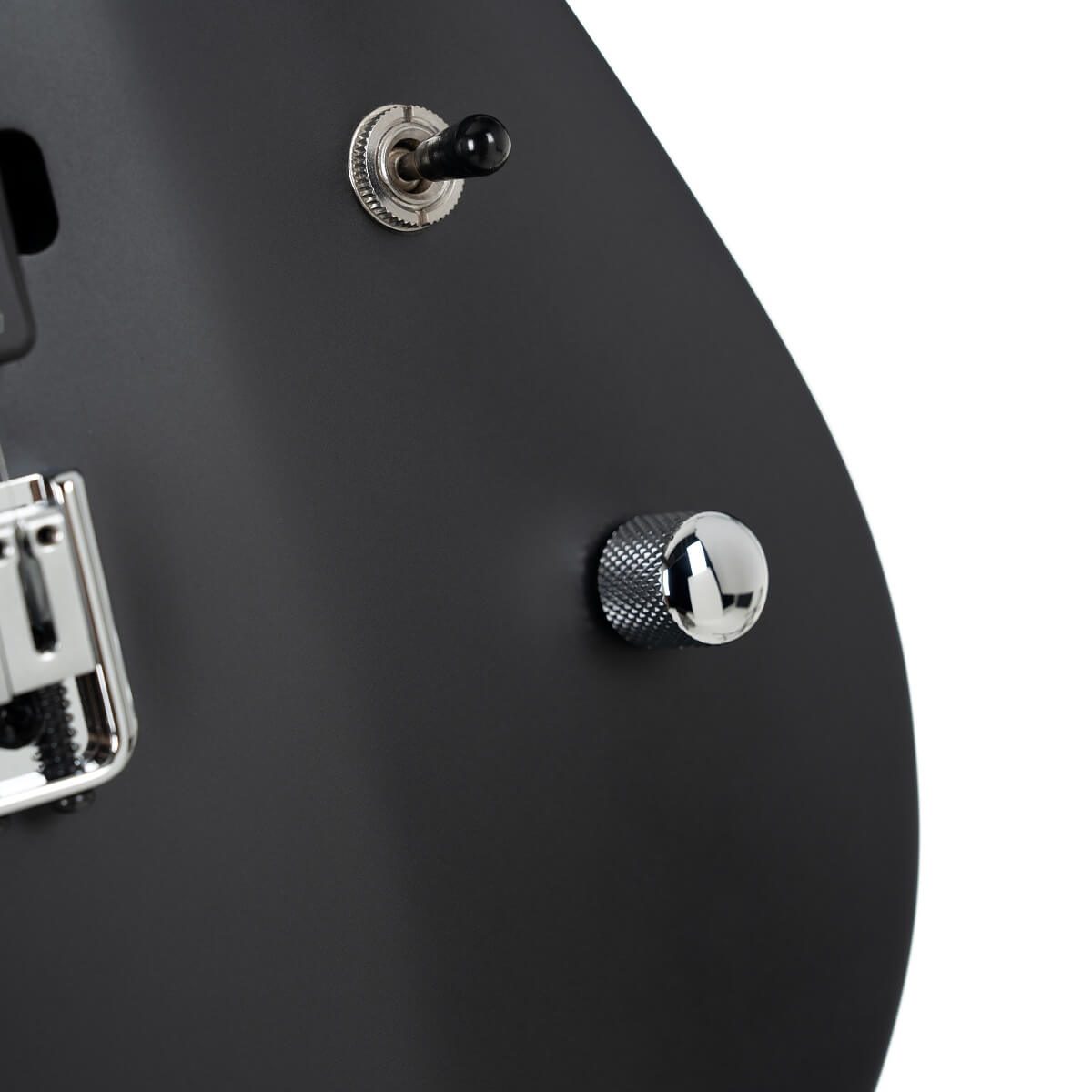

Switch between active aggression and passive clarity with the multi-voiced Fluence Modern electronics.

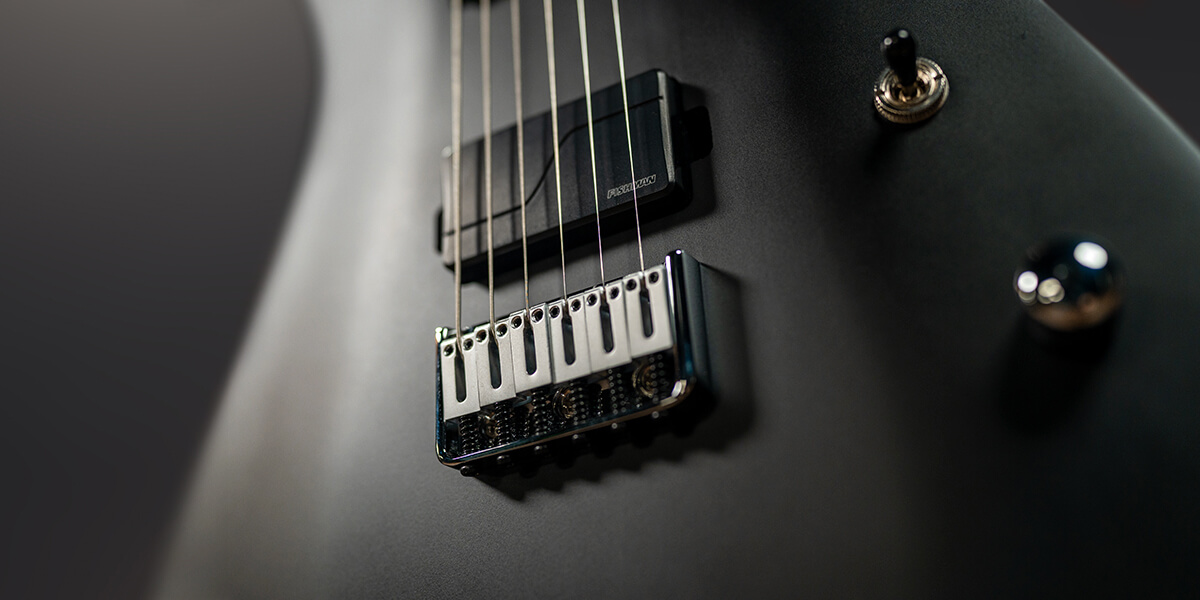

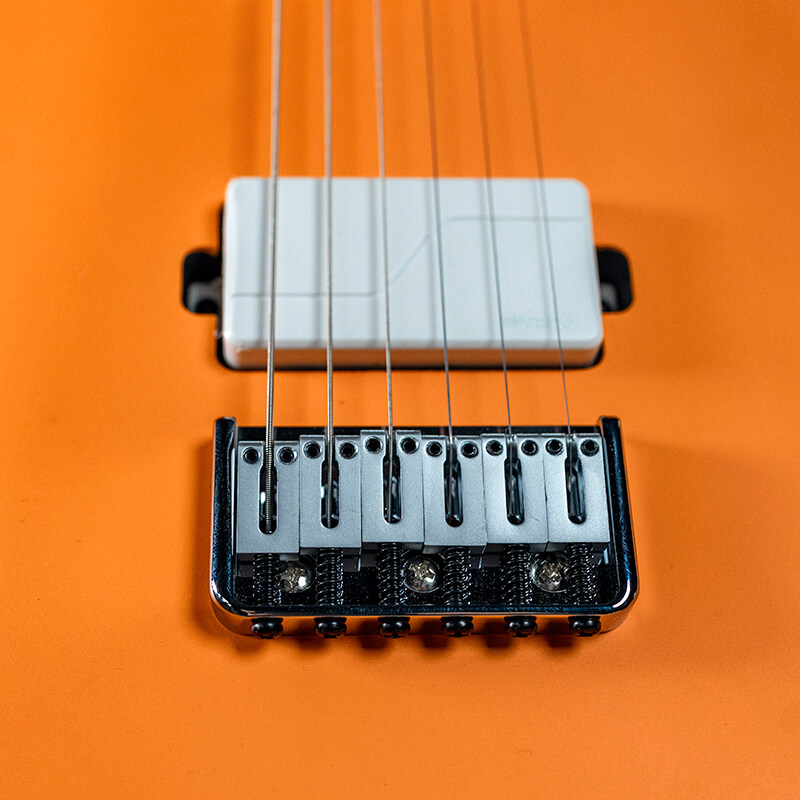

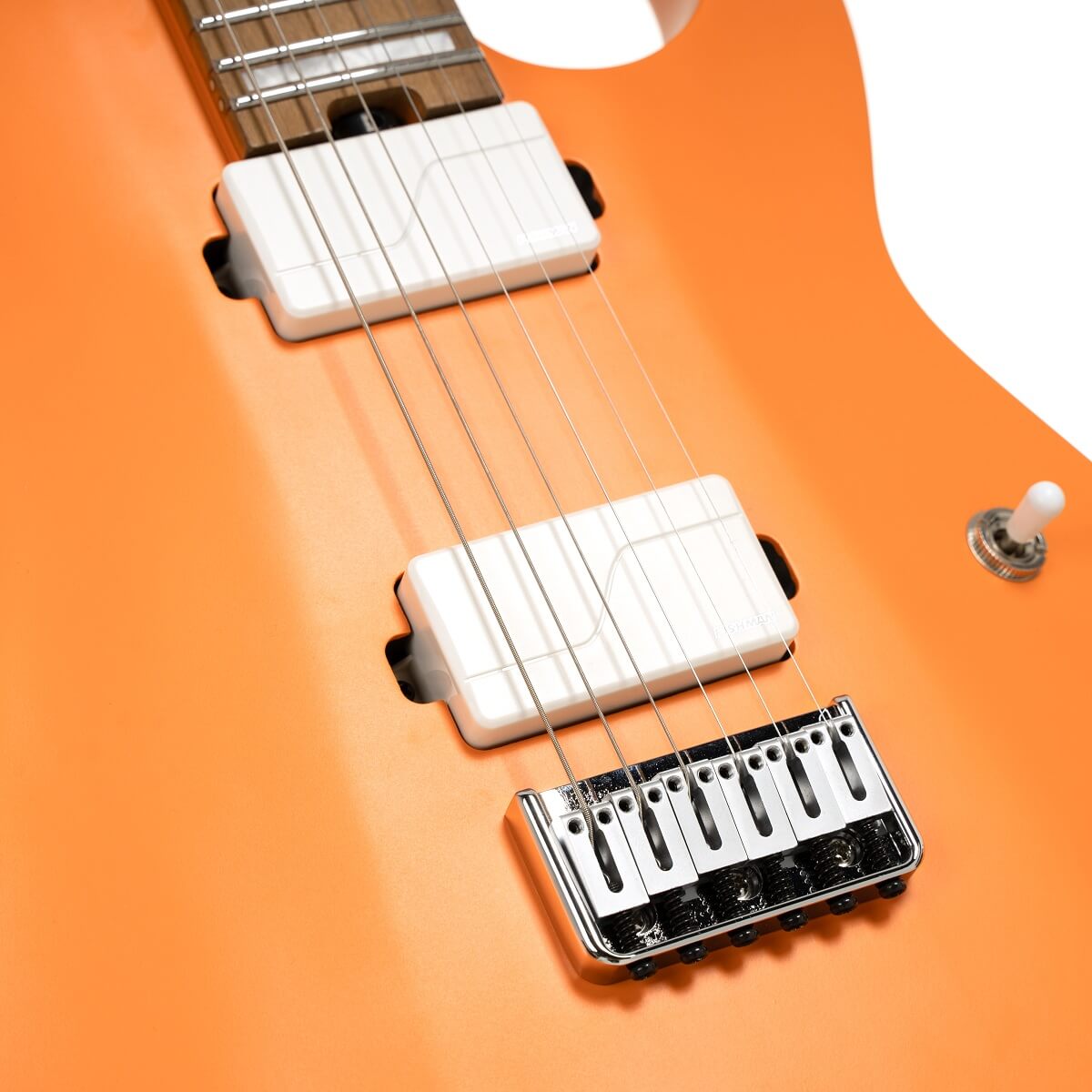

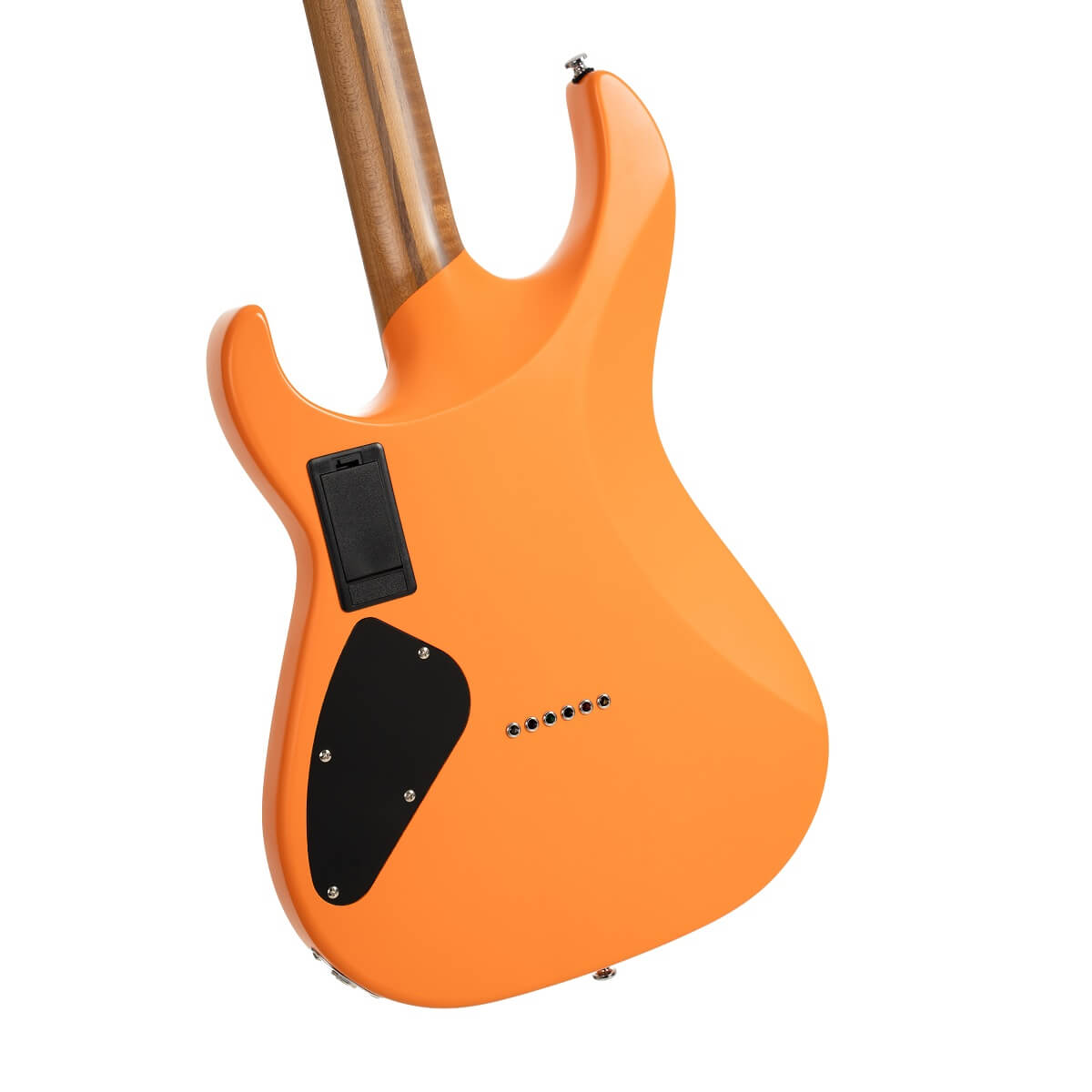

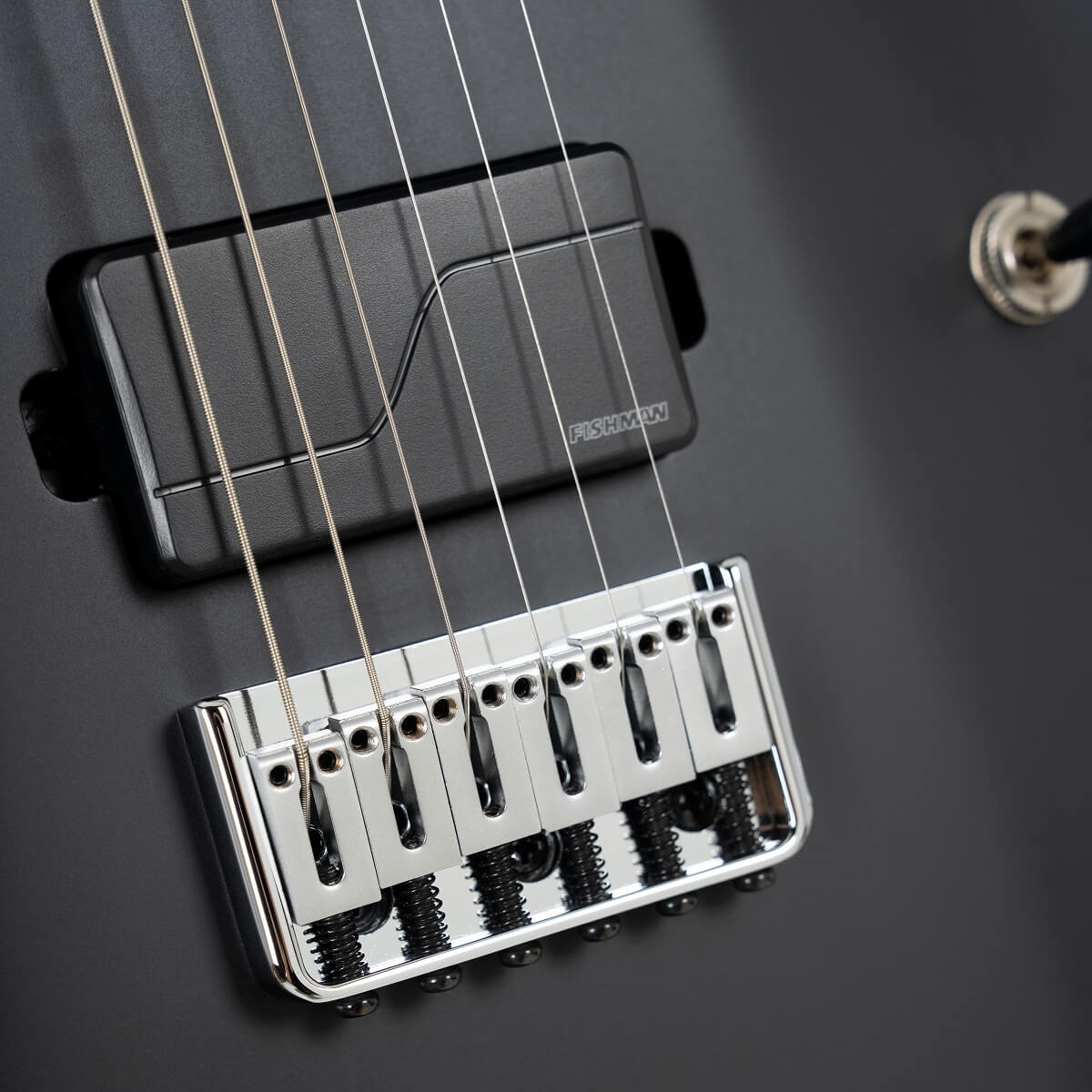

With a hardtail bridge, string-thru body, and straightforward controls, the KX600 Infinite delivers reliability and tone — no tremolo tricks required.
Created for serious players, this guitar brings real-world insights from guitarist Neil Zaza to ensure pro-level performance.

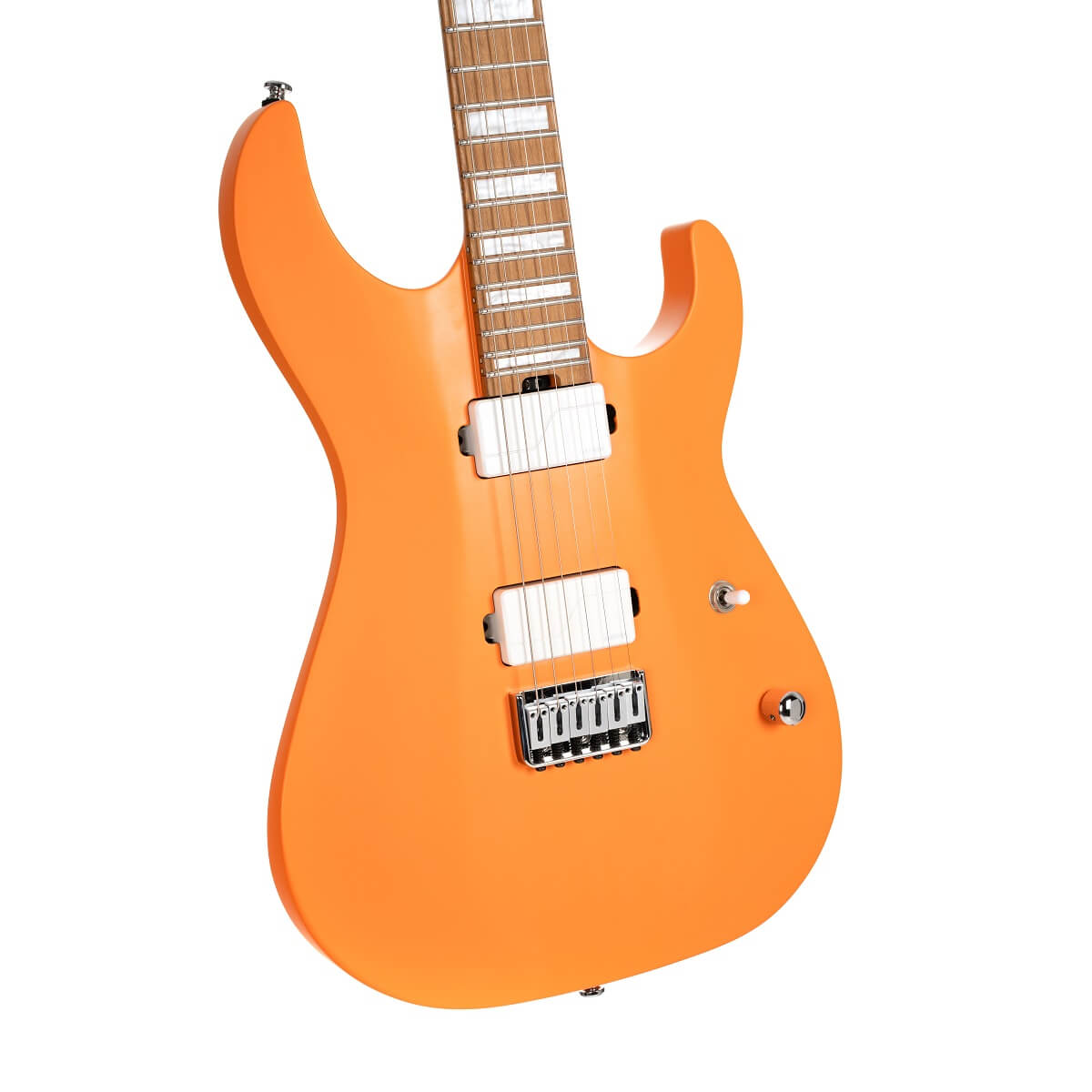

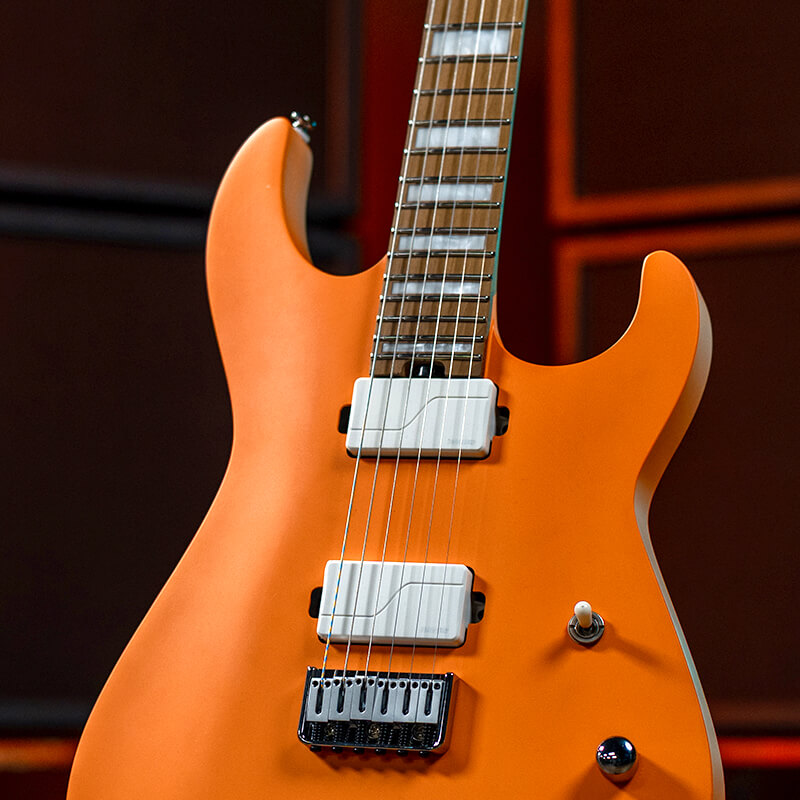

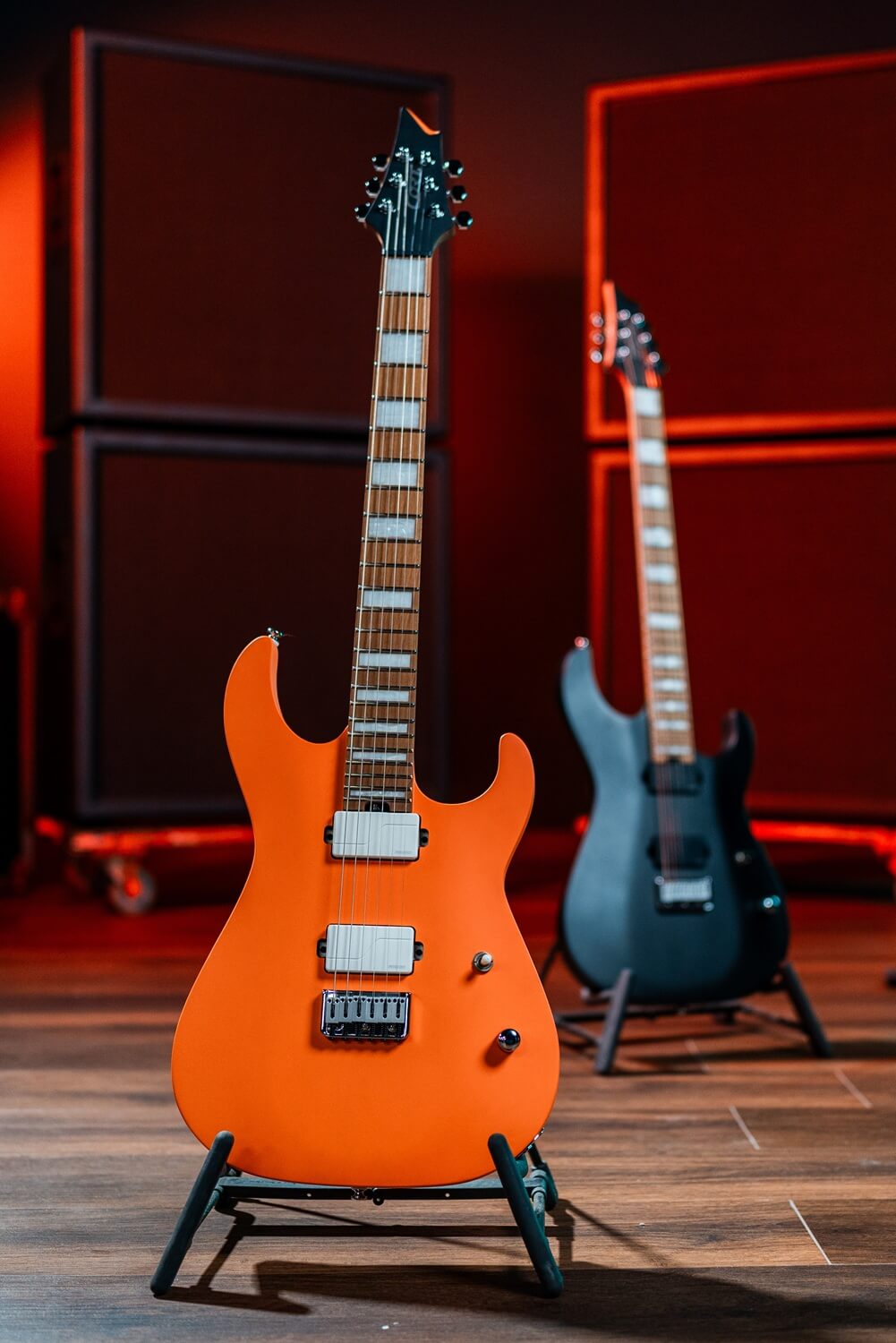

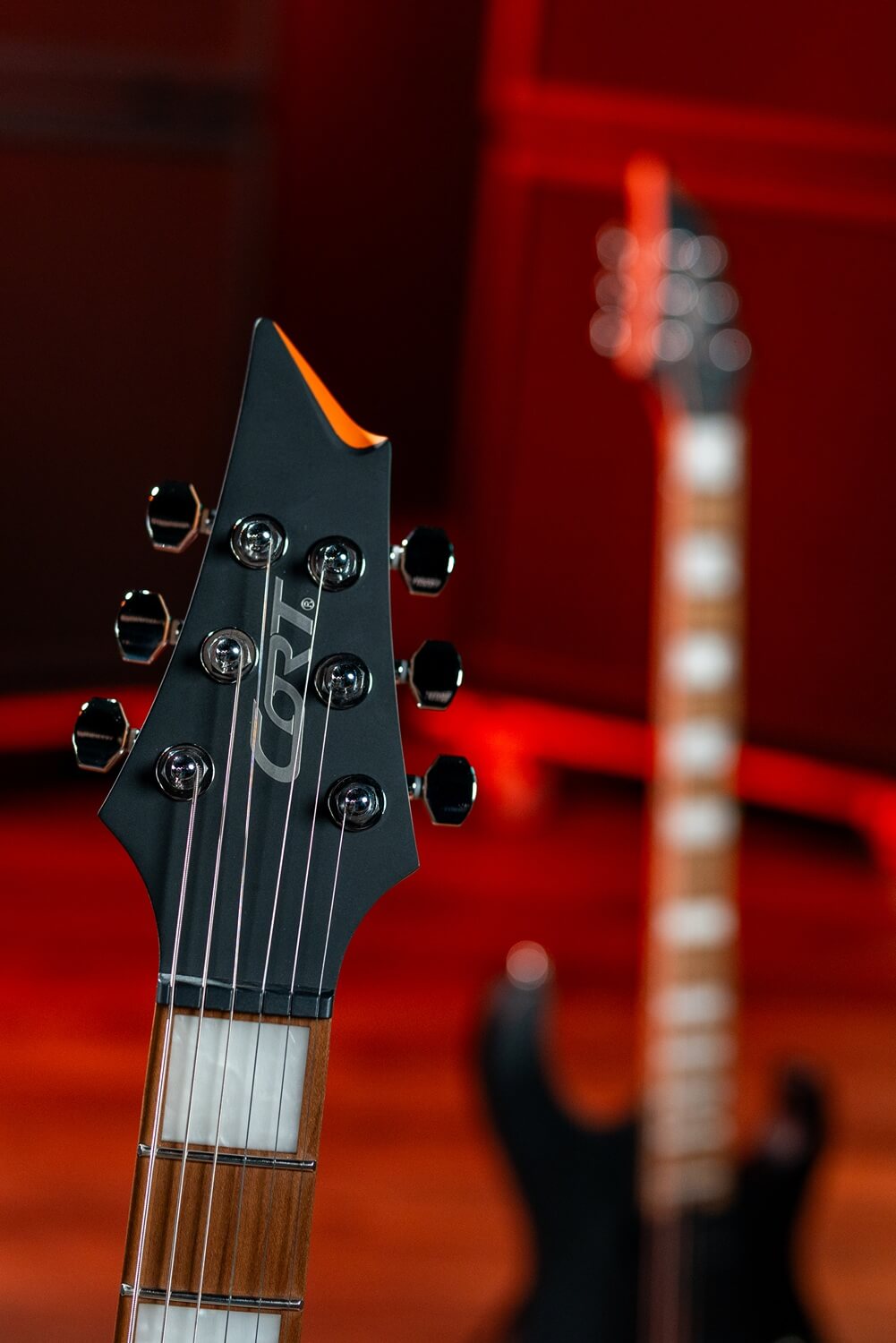

A striking, boutique-style finish gives this modern metal machine standout stage presence.
Delivers exceptional sustain and tone depth across all registers.
Provides three distinct voicings — active, passive, single coil — at the flip of a switch.

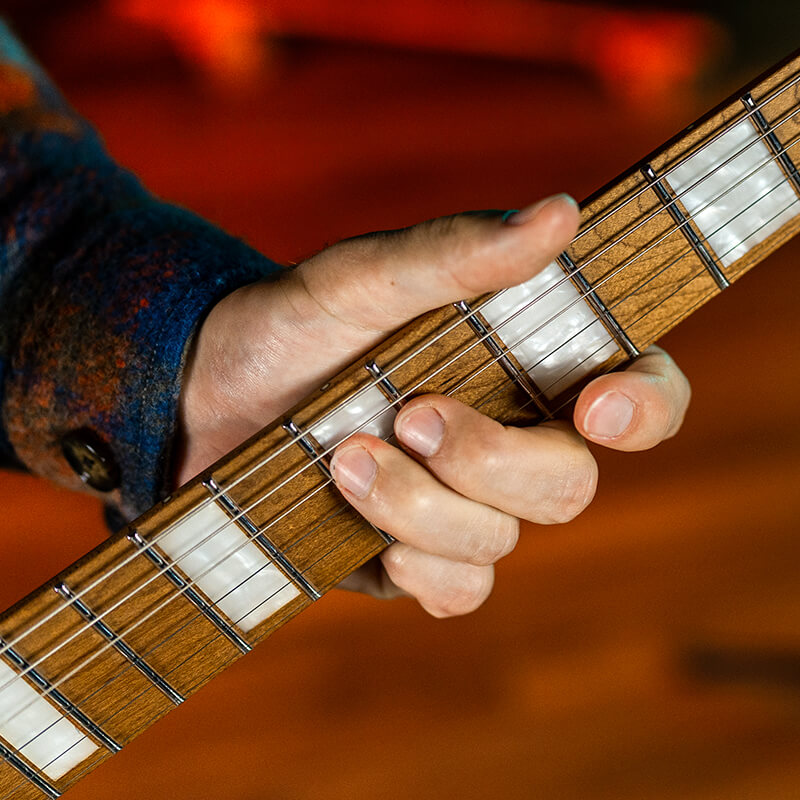

Offers premium touch, increased durability, and smooth playability.
Built for fast, precise playing and long-term durability.

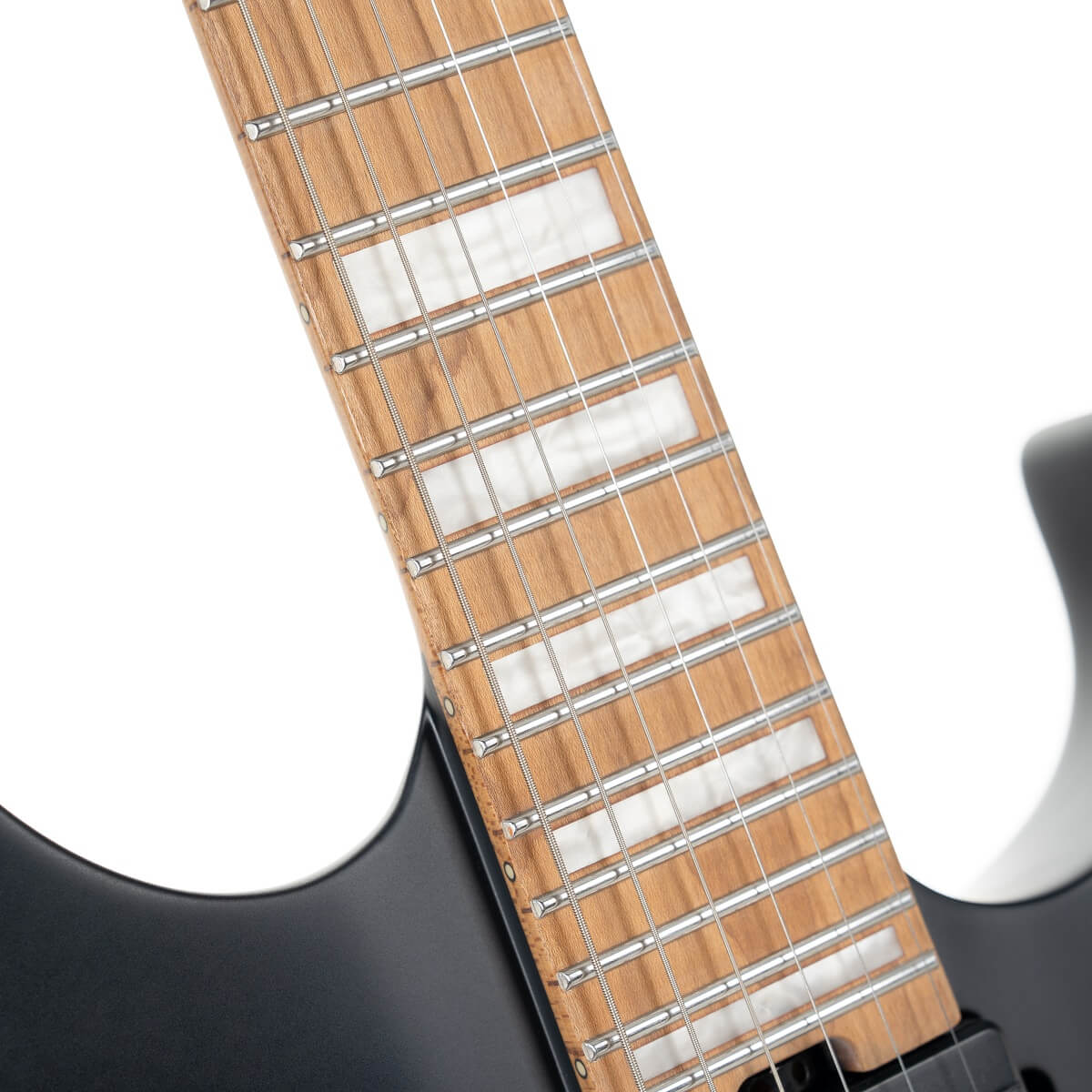

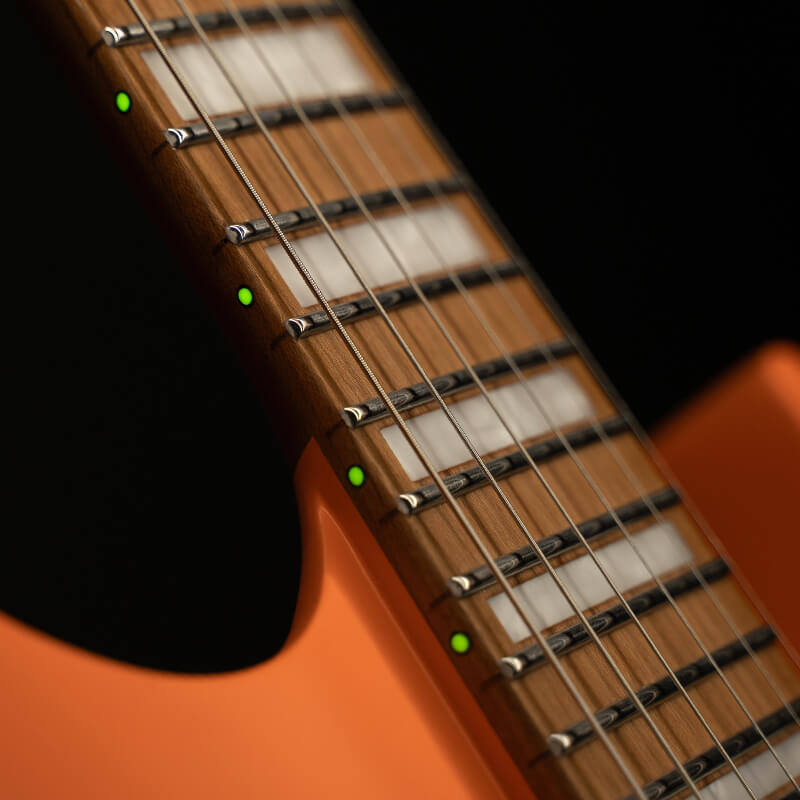

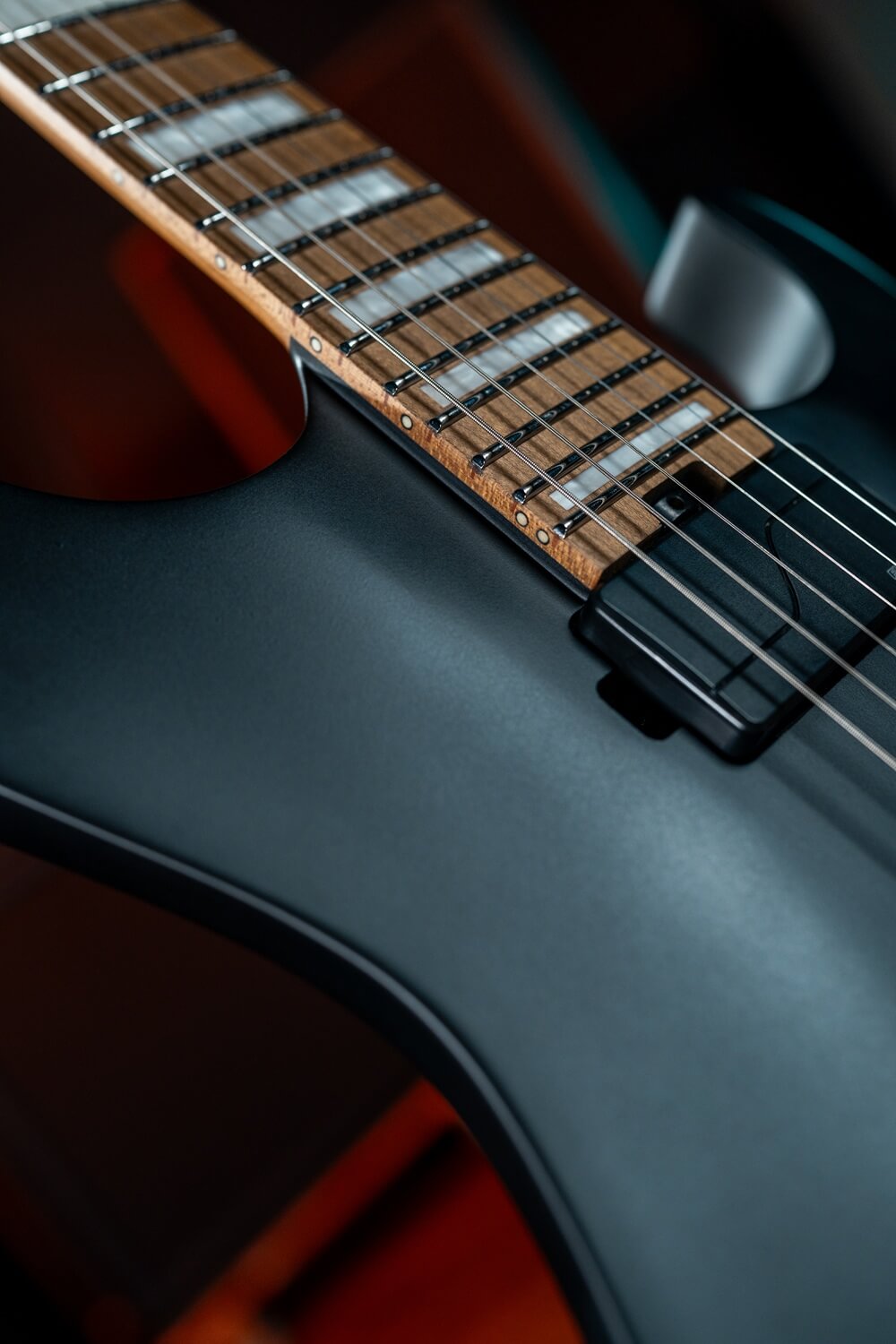

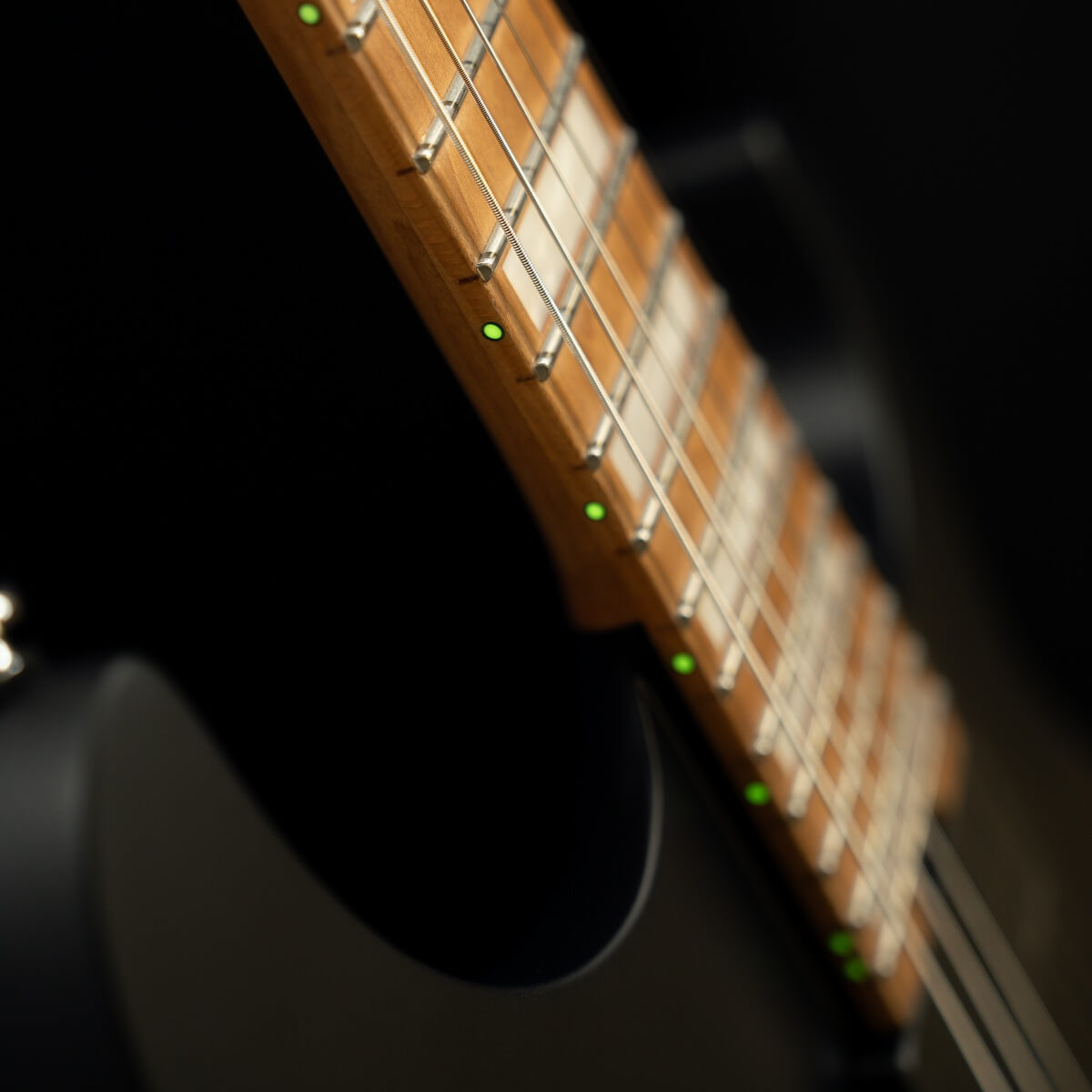

Keep your fretboard visible even on the darkest stages.
Electric guitar manual KX600 Infinite schematic
Contact us to get more information about this instrument or to ask questions.
|
Construction |
Neck-Thru |
|
Body Material |
Basswood |
|
Top Material |
N/A |
|
Scale Length |
25.5″ (648mm) |
|
Neck Material |

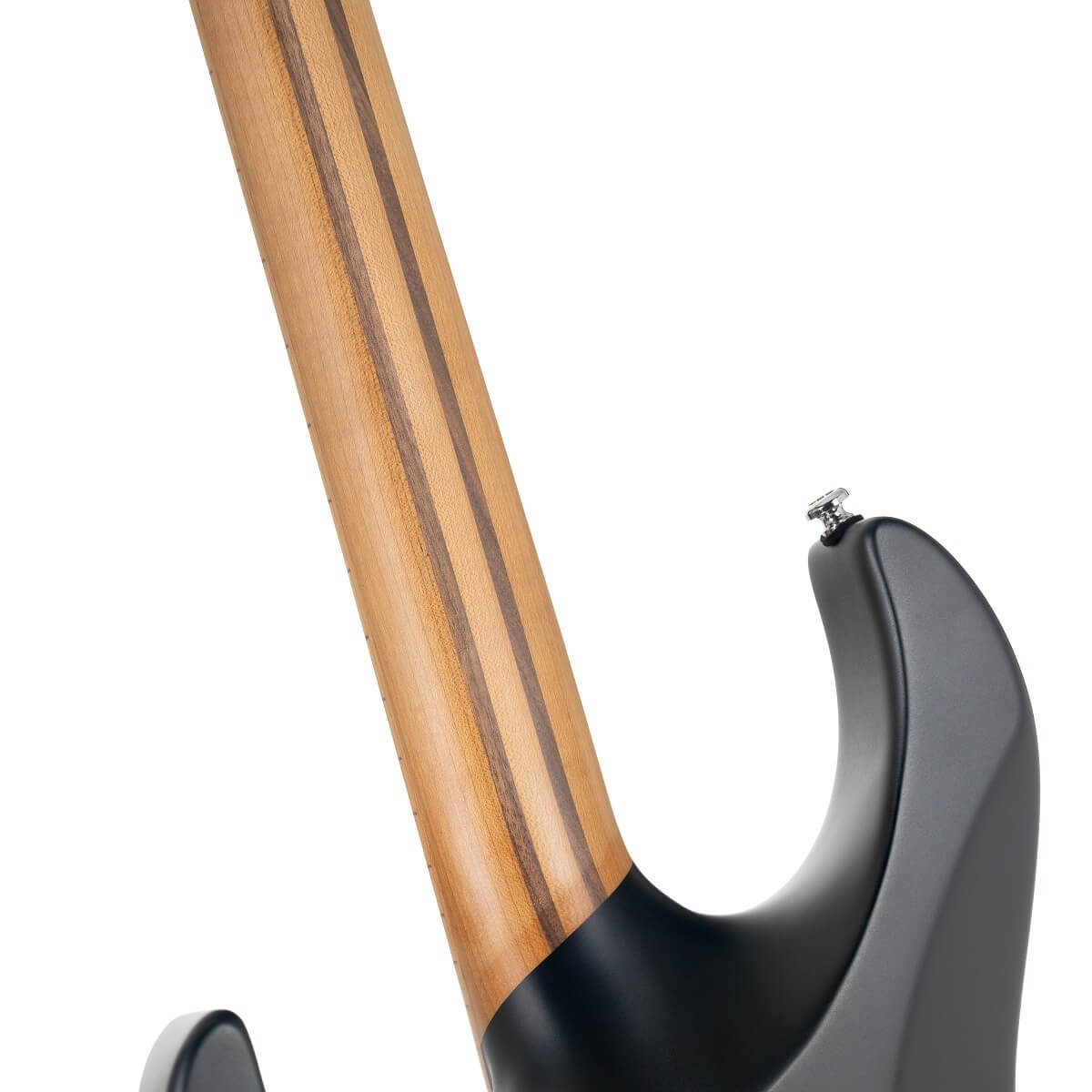

Roasted Maple & Walnut 5-ply Laminated |
|
Neck Shape |
Slim – D Shape |
|
Neck Thickness |
1F : 19.0mm, 12F : 21.0mm |
|
Fingerboard Material |
Roasted Maple |
|
Fingerboard Radius |
15.75″ (R400) |
|
Number of Frets |
24 Frets |
|
Fret Type |
Jumbo(2.9×1.4), Stainless Steel |
|
Inlay |
White Pearl Block with Luminous Side Dots |
|
Nut Material |
Graph Tech® Black TUSQ |
|
Nut Width |
1 11/16″ (43mm) |
|
Truss Rod |
Two-way Adjustable with Spoke-nut |
|

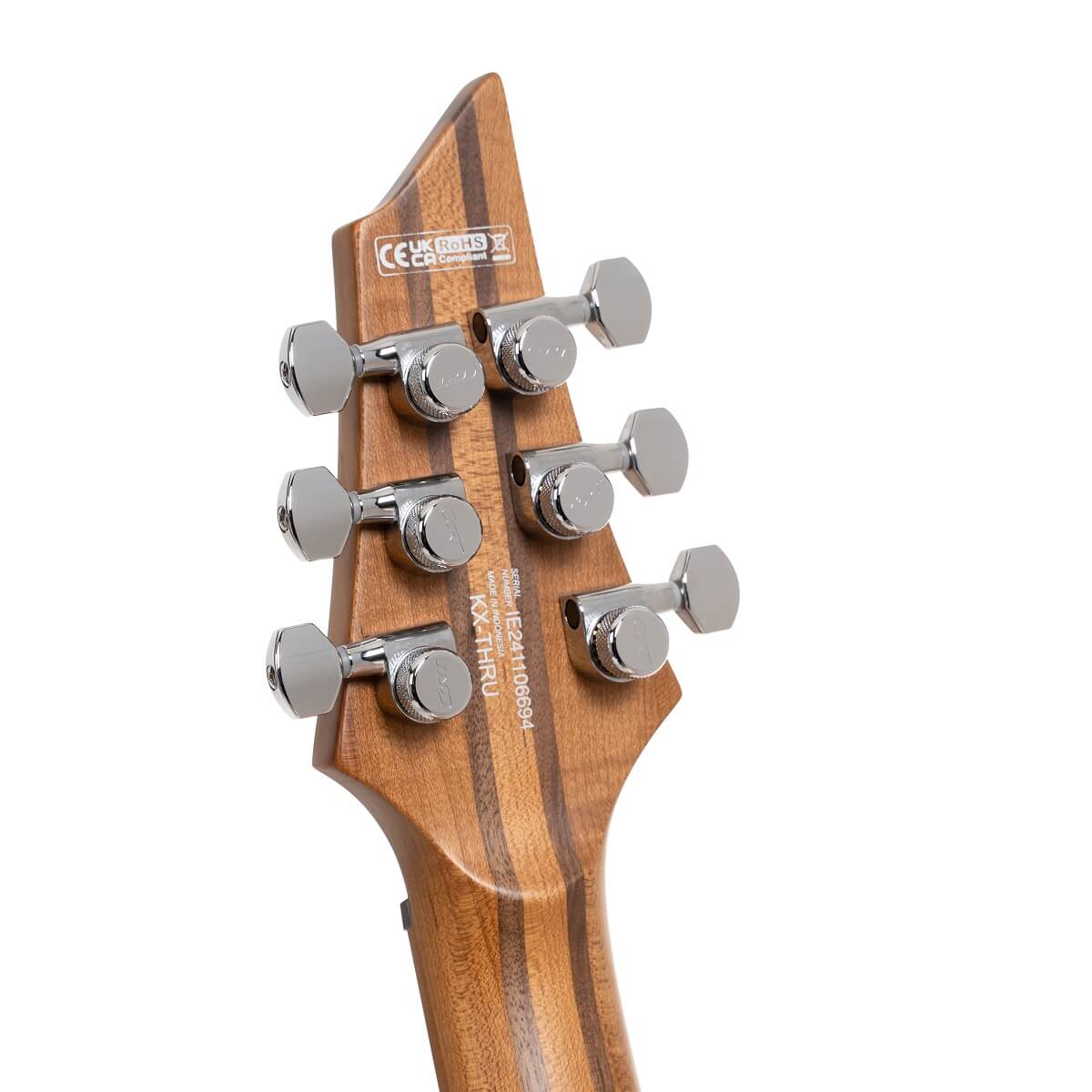

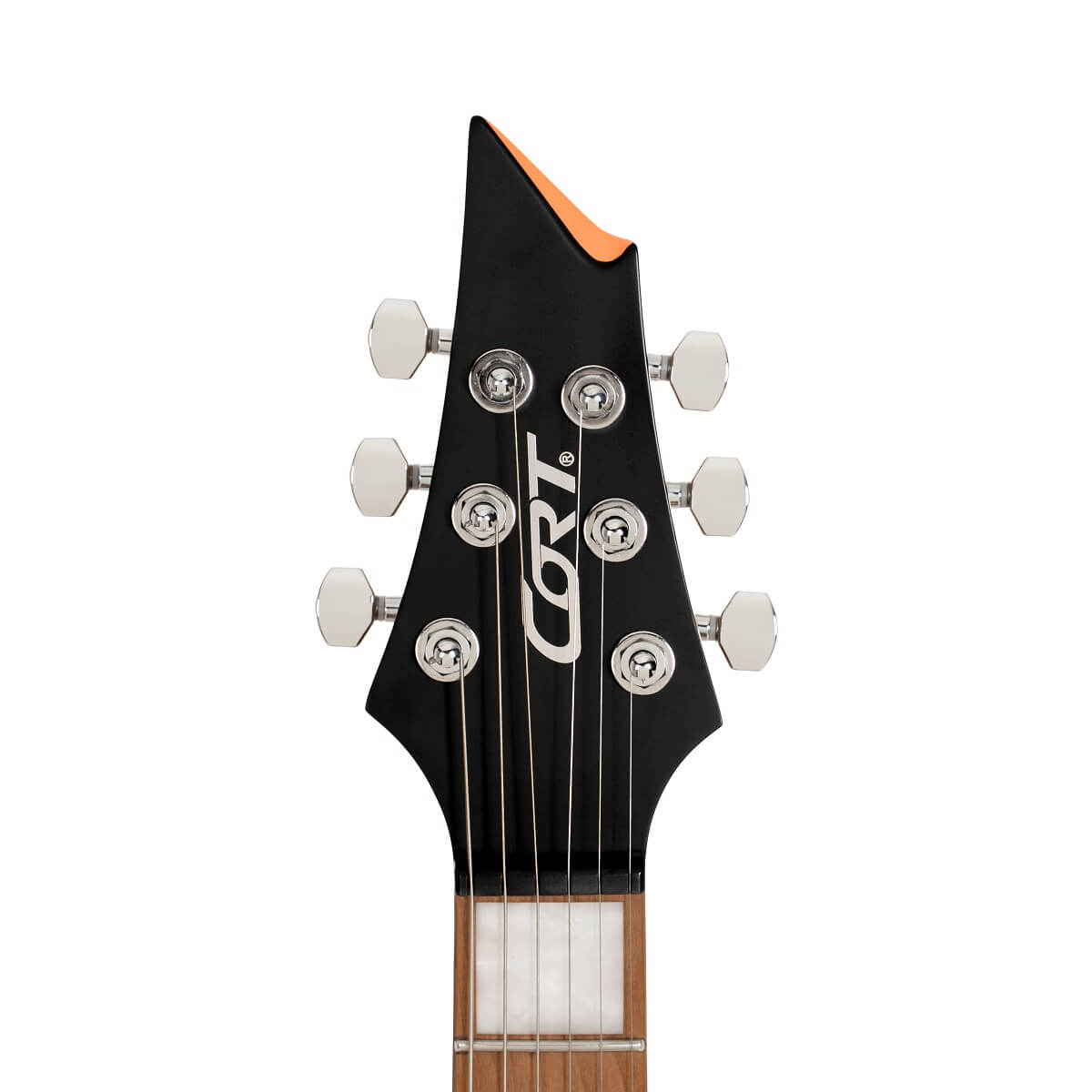

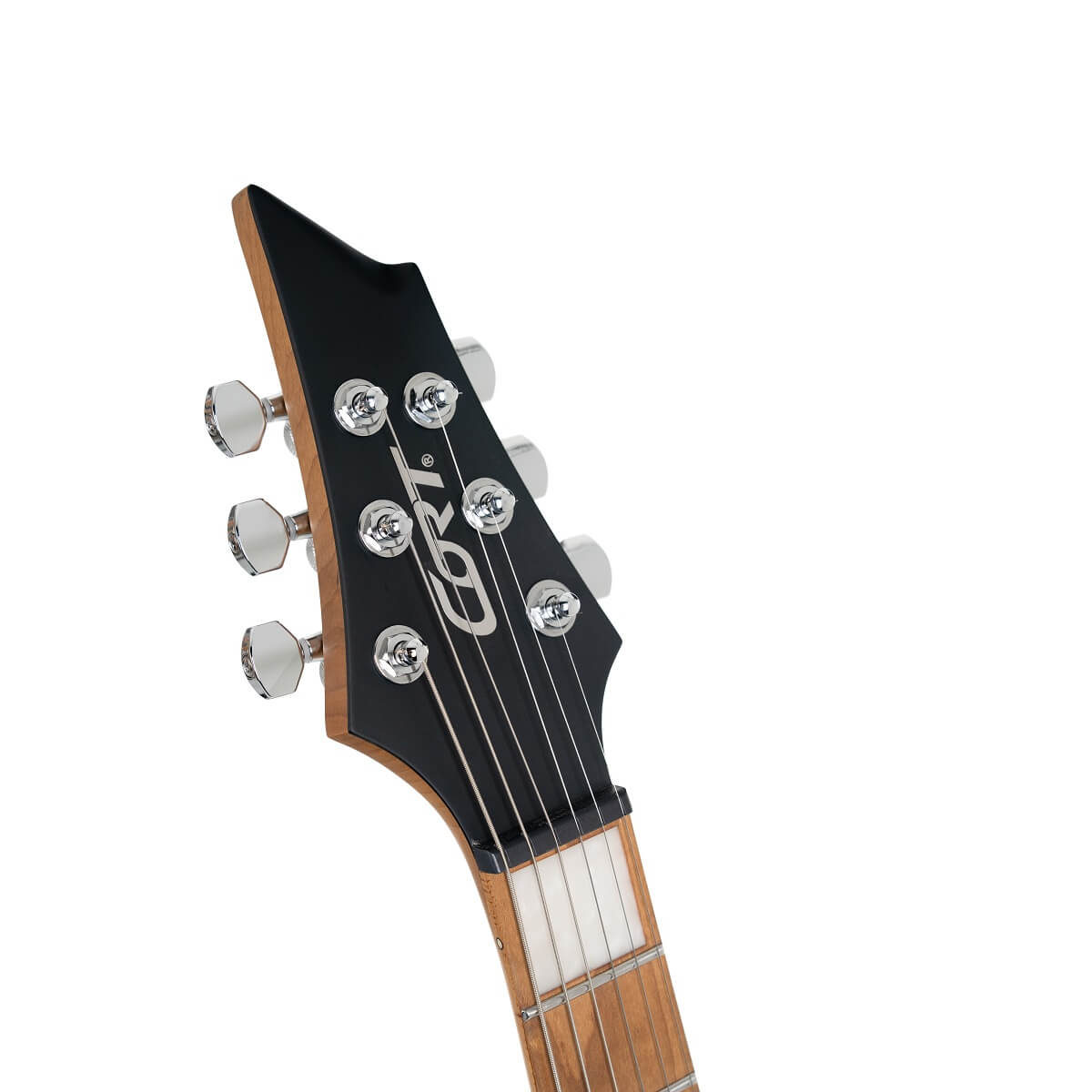

Tuning Machines |
Cort® Locking Tuners |
|
Bridge |
Cort® Hardtail |
|
Configuration |
HH |
|
Pickups |
Fishman® Fluence Modern Humbucker set |
|
Controls |

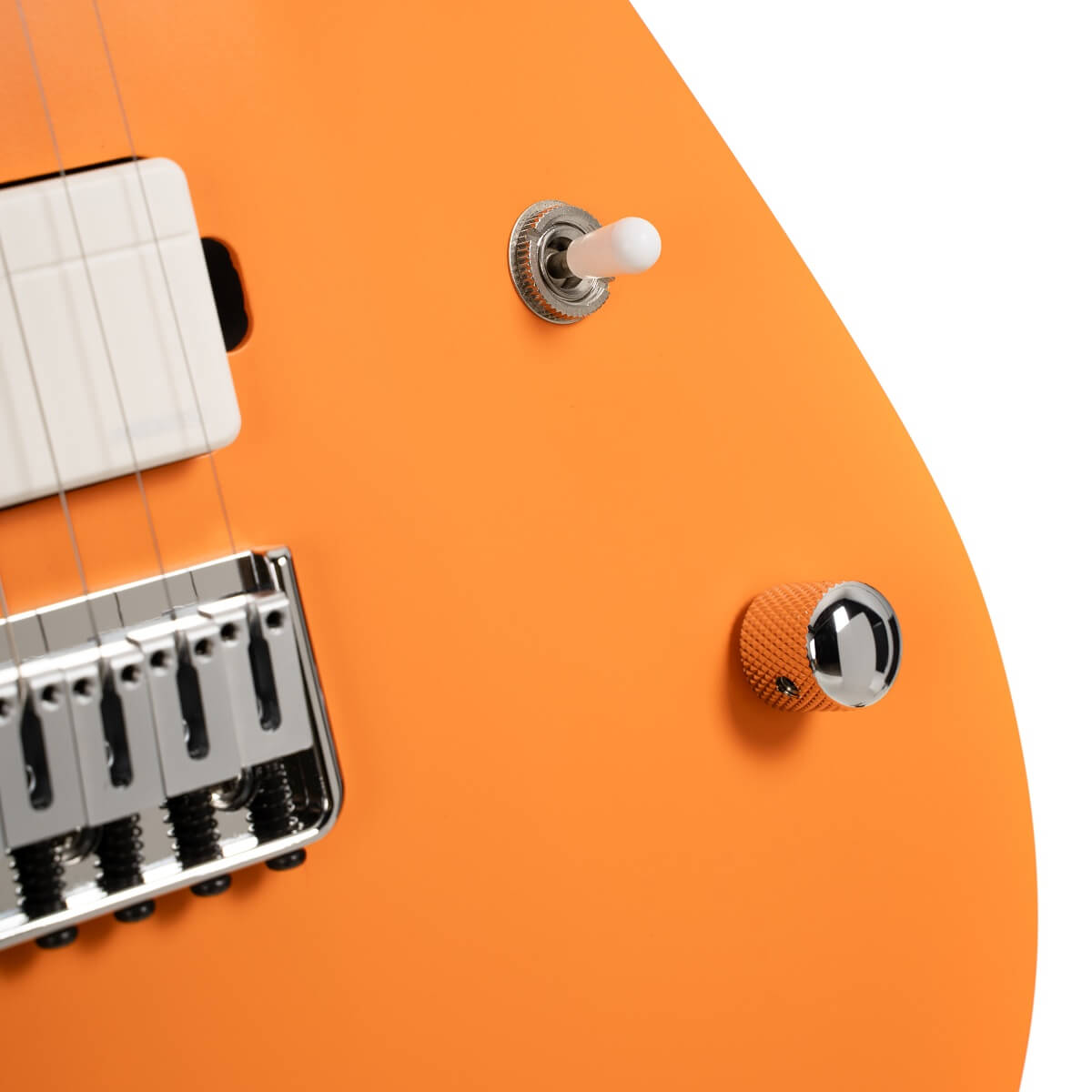

1-Volume(Push-pull), 3-Way Super Switch |
|
Hardware |
Chrome |
|
Strings |
D'Addario® EXL110 (.010 .013 .017 .026 .036 .046) |
|
Neck Finish |
Matte |
|
Body Finish |
Matte(Satin) |
|
Colors |

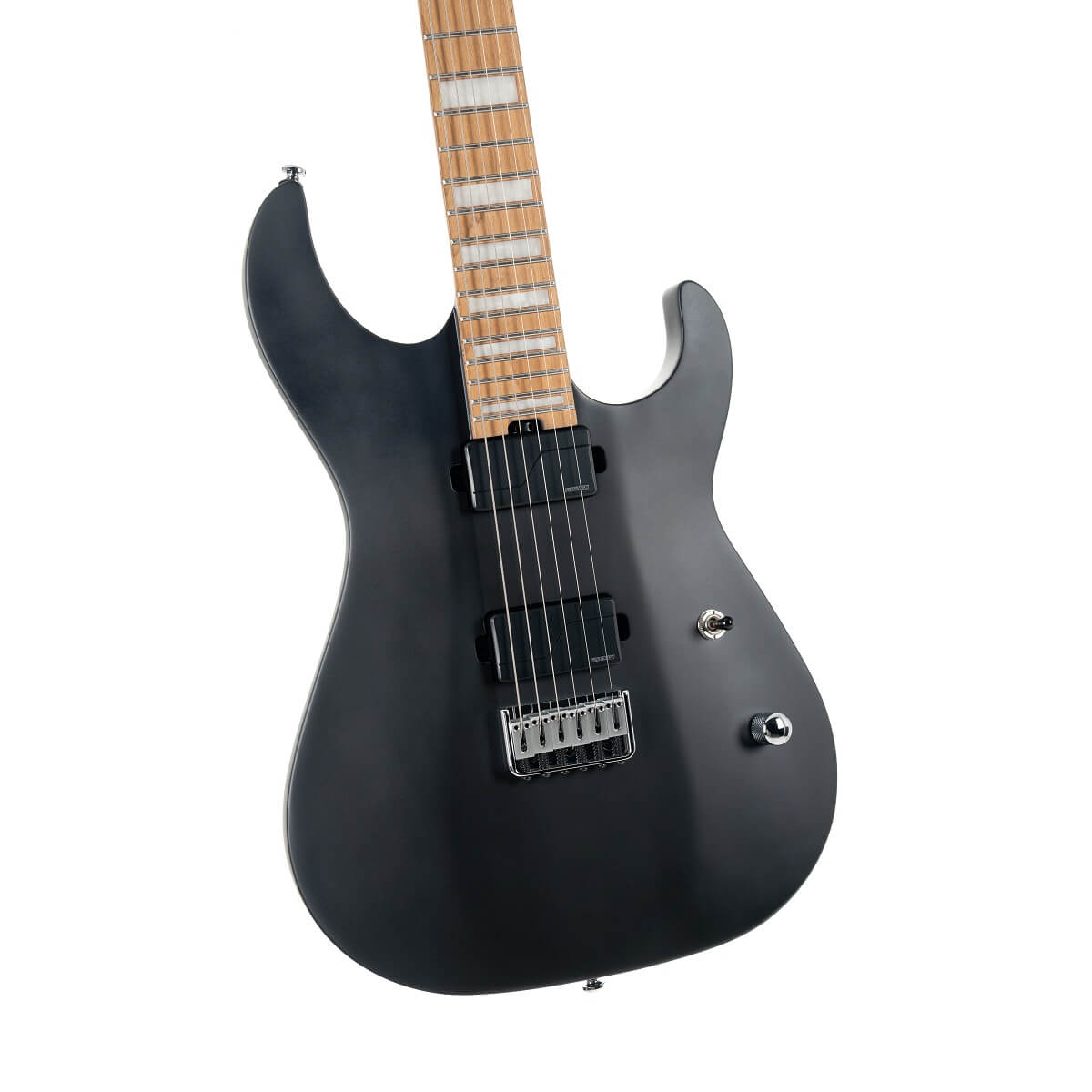

Orange Crush Satin(OCS) Black Satin(BKS) |
